DIY 3D paste extruder and chocolate printer

This project has involved a huge learning curve. Optimistically I hoped that I would simply download an existing paste extruder 3d model, print it and then make some small tweaks. Instead I discovered that the existing extruders did not work for fine extrusion through a nozzle. That meant that I needed to learn about gear ratios and how to make a new 3d model in blender. If you’ve ever used blender you’ll know that it is not an easy program for beginners. Weeks later and I finally created a model that works.

In the future I’d love to tinker with the design and add a heating pad and thermistor to the syringe to allow for chocolate printing, this could be wired in where the printer currently controls the bed temperature. Currently only the nozzle is heated using the heater block.

To make this project you will need:
* Sovol svo6 3d printer
* PLA filament in whatever colour you want to print your extruder.

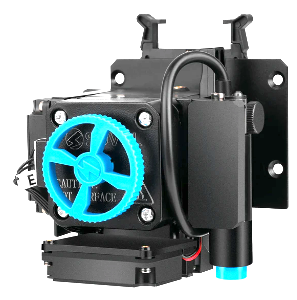

* An extra sovol sv06 printer head. ($49) I bought mine directly from sovol3d.com. Look under spare parts, this gives you the motor, heat block with thermistor and nozzle, inductive proximity sensor switch for Z probe auto bed leveling, the mount for that sensor, adapter board PCB breakout module and all the little cables that connect those parts together. You don’t need the fans so you can unplug those from the PCB.

* Electronic cable and a soldering iron – to lengthen the motor cable.

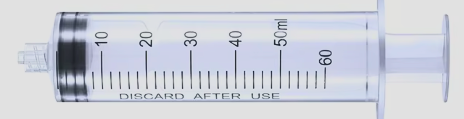

* A 60mL (2.03 fluid ounces) luer lock syringe

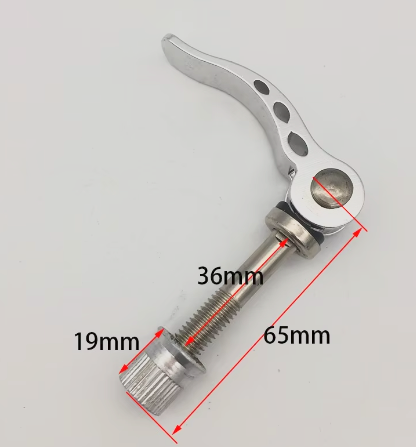

* 1 Bicycle Quick Release Seat Post Clamp ($2.50 on aliexpress)

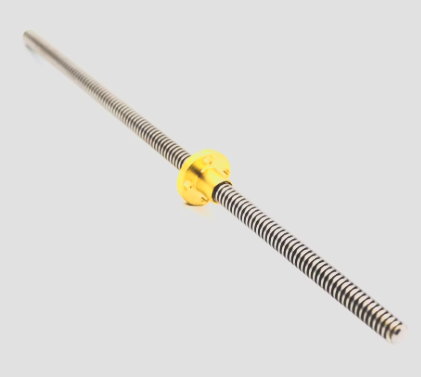

* T8 Lead Screw and Nut Diameter 8mm Pitch 2mm Length 200mm

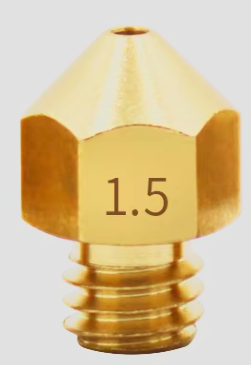

* A larger printer nozzle, I used a 1.5mm. If you are intending on using this in the food industry you will need to source a stainless steel one.

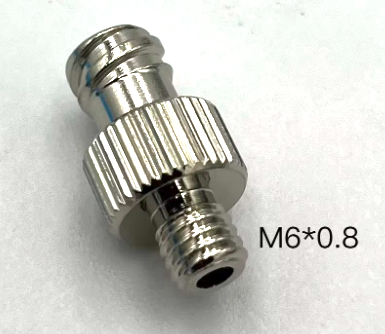

* An adapter to attach the luer lock syringe to the top of the heat block (luer to m6 thread adapter). These cost about $1 on aliexpress

* A silicone mat to print onto and two strong magnets to hold it in place. I did try using baking paper but the food did not grip well enough to print.
* screws and nuts to put it altogether:

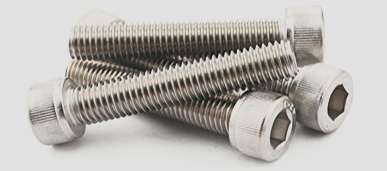

3 x Hex Socket Head Cap Bolt diameter M3 length 75 to 80mm
2 x Hex Socket Head Cap Bolt diameter M3 length 50mm
2 x Hex Socket Head Cap Bolt diameter M3 length 10mm
2 x Hex Socket Head Cap Bolt diameter M3 length 35mm

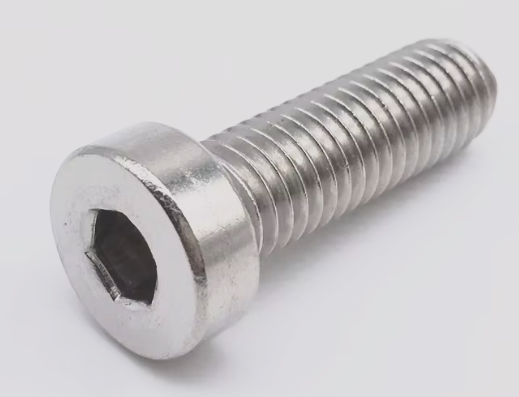

2 x Hex Socket Head Cap Bolt diameter M3 length 8mm these ones need to be low profile for clearance, ie the top head bit can’t be too thick

7 x M3 nuts
Optional if you want to try and make this work for chocolate:
* Heating pad a suitable size to wrap around the syringe (these are available on aliexpress search for electric heating pad 3d printer)
* Flexible aluminium sheet to stick the heating pad on to and wrap around the syringe, this way the syringe can still be washed
* A thermistor

After finishing the video I made some more refinements to the model. Those changes were: lengthen the top and bottom gear holders to accomodate the bigger gear, lengthen the bracket, make the hinges stronger, add a place to attach the sensor, add a holder for the heater block to sit and decrease the depth behind the syringe so that the PCB board sits closer to the heat-block and the cables are not as stretched. There were also other slight changes to screw positions. After making all those changes the model was not manifold and would not slice to 3D print, so I ended up having to pay someone who knew a lot more about blender than me to fix the non-manifold issue. So as much as I intended to make this free – hopefully you now understand why it is not.
* My STL files to download and print on your 3d printer

Buy$5.99

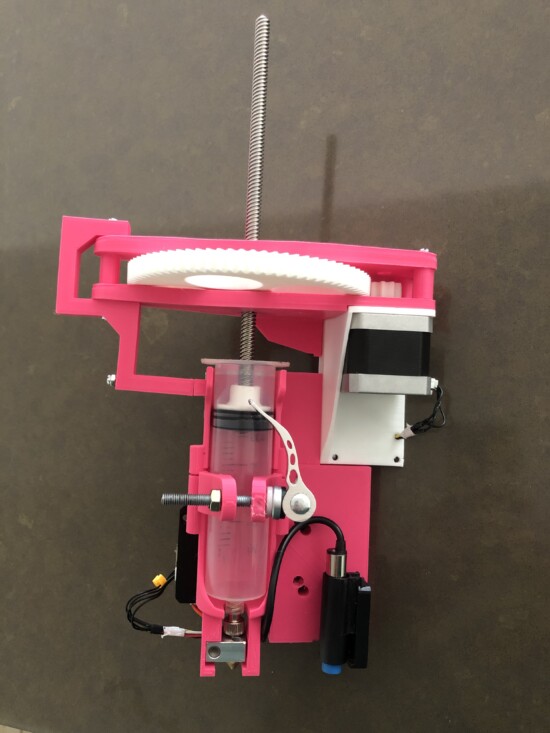

Above is the, almost, current version printed out and assembled. I have since thickened up the support bracket, because now that it is longer it needs to be stronger.
Or if you want to print the first models shown in the video (note they are not strong enough to extrude through a nozzle but a good starting point if you want to design your own) first one, second one and another one.

To set up the extruder on the printer

Turn off the printer and unplug from the wall.
Unplug the main cable to the printer head pcb.
Undo the 3 screws that hold the printer head in place and carefully store the printer head so that you can print with filament again later.
Add the extruder into place and attach using the same 3 screws.
Plug the cable into the printer head pcb (it won’t work if you forget this step).
Plug the printer in to the wall and turn it on.
Set z offset, to do that select bed leveling / probe z offset and then adjust the height of the nozzle manually (NOTE do not choose auto home as it requires the nozzle to heat up very hot – which will melt the syringe and PLA holder).

When slicing your model in sovol cura choose SVOL-SVO6 from the top tab then manage printers / machine settings / extruder 1
Take a screenshot of what these settings are normally so that you can change it back later when you swap back to filament.
Change the nozzle size to match the nozzle that you purchased, mine was 1.5mm.

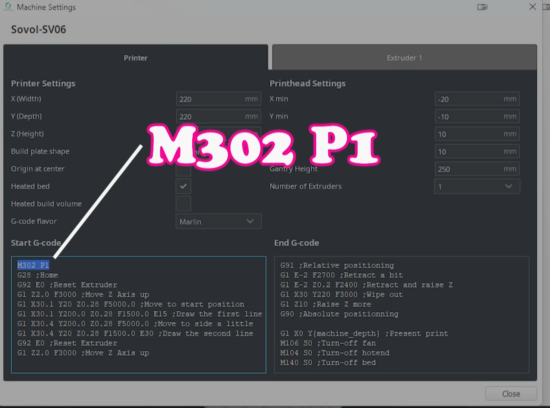

Click on the printer tab and in the start gcode box add:
M302 P1 then close this popup

click on normal on the top tabs and depending on what you are printing make changes here to the nozzle temperature, bed temperature (I set mine to 15C (59 degrees Fahrenheit) so it did not heat, because the room was warmer than that) and also play with layer height and line width. This will vary depending on what food you print.
Once you are printing you can alter the settings on the printer itself, look under tune for speed and flow. Slowing the print speed down to 10-20% significantly improved the output for food printing.

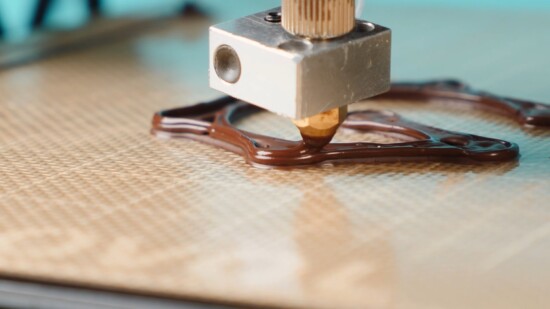

Things to try printing: nutella, whipped butter, cream cheese, chocolate ganache, frosting or basically anything that you would be able to pipe from a normal piping bag through a fine nozzle.

To swap back to filament printing

On the printer itself turn it off and unplug from the wall.
Swap back to the normal print head – remember to plug the cable into the printer head.
Turn it back on then on the printer screen select: configuration / restore defaults
Then calibrate the printer – most importantly set the probe z offset.
In sovol cura delete M302 P1 from the gcode and change the settings in manage printers / machine settings / extruder 1 and printer back to normal then close those tabs
On the main cura screen click on normal to open print settings, next to profile choose a different profile such as fine. Cura will ask you do you want to keep or discard the changes you made to settings. Click ‘discard’ and all the layer height, line width etc will go back to standard. You can now select the ‘normal’ profile and it will be the standard settings.
